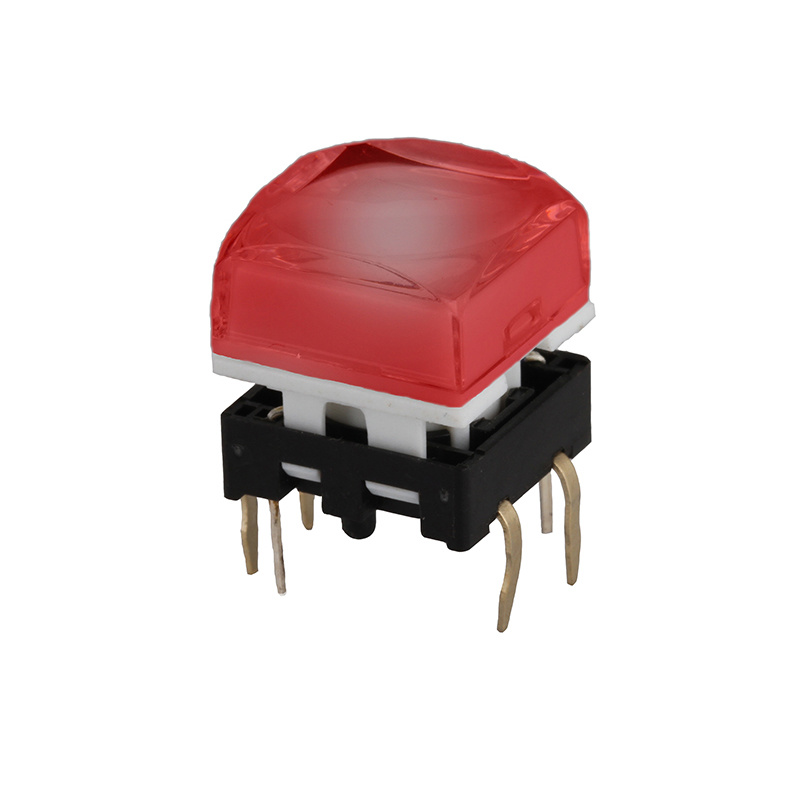

on on, 3PDT Pin Pushbutton Switches

  • PUSH BUTTON SWITCH > PBS-24-302

  • Multi Control Switch

  • Power Built-in Type

  • Control Button, Start Button

  • Single-pole on-off Switch

  • Type c Contact

  • Retro-reflective Mode

  • saipwell

  • UL, CE, CCC

  • Push Switches with Optional Wire Connected

  • BNE

  • Polly Bag

  • ROHS, SGS

  • China

  • 85365000

on on, 3PDT Pin Pushbutton Switches

Sub-Miniature Pushbutton Switches
Used for Lighting, Computer peripherals, Communication, Medical equipment. IPC, Marine
Feature

Do not have wear and damage problem by pressed contact structure
,,
Sho ck resistant switch, withstands harsh environments, Available in aluminum and plastic housings

SPECIFICATION
Pole-Position: Momentary Type, SPST with LED
Contact Rating: 30V DC, 0.1A
Operating Life: 50,000 cycles
Operating force: 250±100gf
Total Travel: 1.2±0.3mm

Application /
Automotive industry
,
Office appliance, Computer products
,
Communication equipments, Audio equipment

Feature
Small size
Long electrical life
LED,
High brightness LED. Button surface are illuminated and even

Packaging & Shipping
1) Packaging: Carton
2) Shipping
Fedex, DHL, UPS, TNT for samples, 3-7 days.
By Air or by Sea for batch goods, 10-30 days.
3) Payment Terms
T/T, L/C, PayPal; 30% deposits; 70% balance before delivery

Why choose us?
1) We can provide you with different types of micro switches for your selection.
2) MOQ: 2500pcs,mixed order acceptable, welcome trial order.
3) We can provide free samples for your test.
4) Various operating force,height and colour for one switch for your choice.
5) Safety, on-time delivery, excellent quality with competitive price.
6) OEM and ODM professional design.

Our cooperative partner



FAQ
Q1--What is your MOQ?
In general ,Our MOQ is 2500 pcs, it will be more convenient and safety on packaging. Of course, it can be negotiable according to your situation.
Q2--What is the delivery time ?
3-7 days for samples; 10-30 days for batch goods.
Q3--Can you give me samples to test and how many samples?
Yes, we provide free samples, with shipping and taxes paid by the buyer. Usually, free samples are 5 pieces.
Q4--Does your products through UL, ROHS certification and so on?
Yes, our switches are with UL, CUL, VDE, TUV, ENEC, CE, EK, CQC, Nimko, Fimko, Simko, Dimko, CB approved, meet EU, RoHS standard.
Q5--Can you accept OEM?
Yes, we can accept OEM and ODM, they are welcome by us. But please offer us your authorization certification.
Q6--Is there cheap shipping cost to our country?
For small order, express will be best. And for bulk order, shipping by sea is better, but it takes much time.

Contact Rating
Dependent upon contact material
Mechanical life 50000 make-and -break cycles at full load
Contact resistance 20m Ω max.initial @2-4 VDC 100mA, for both silver and gold palted contacts
Insulation Resistance 1000M Ω min.@seal level
Operating tenmperature -30 ºC to +85 ºC
Cap installation force 10 lbs,max ,permissible

Material

Case & Bushing
Glass filled nylon6/6 or nylon 4/6(UL94v-0)
Plunger Glass filled nylon or glass filled polyester(UL 94V-0)
Switch Support Copper alloy or steel, tin palted
Switch Support Retauber Stainles steel
N.O&N.C Contacts Brass, with gold plate over nikel plate
Common contacts & all terminals copper alloy with gold plate over nickel plate
Terminal seal Epoxy
