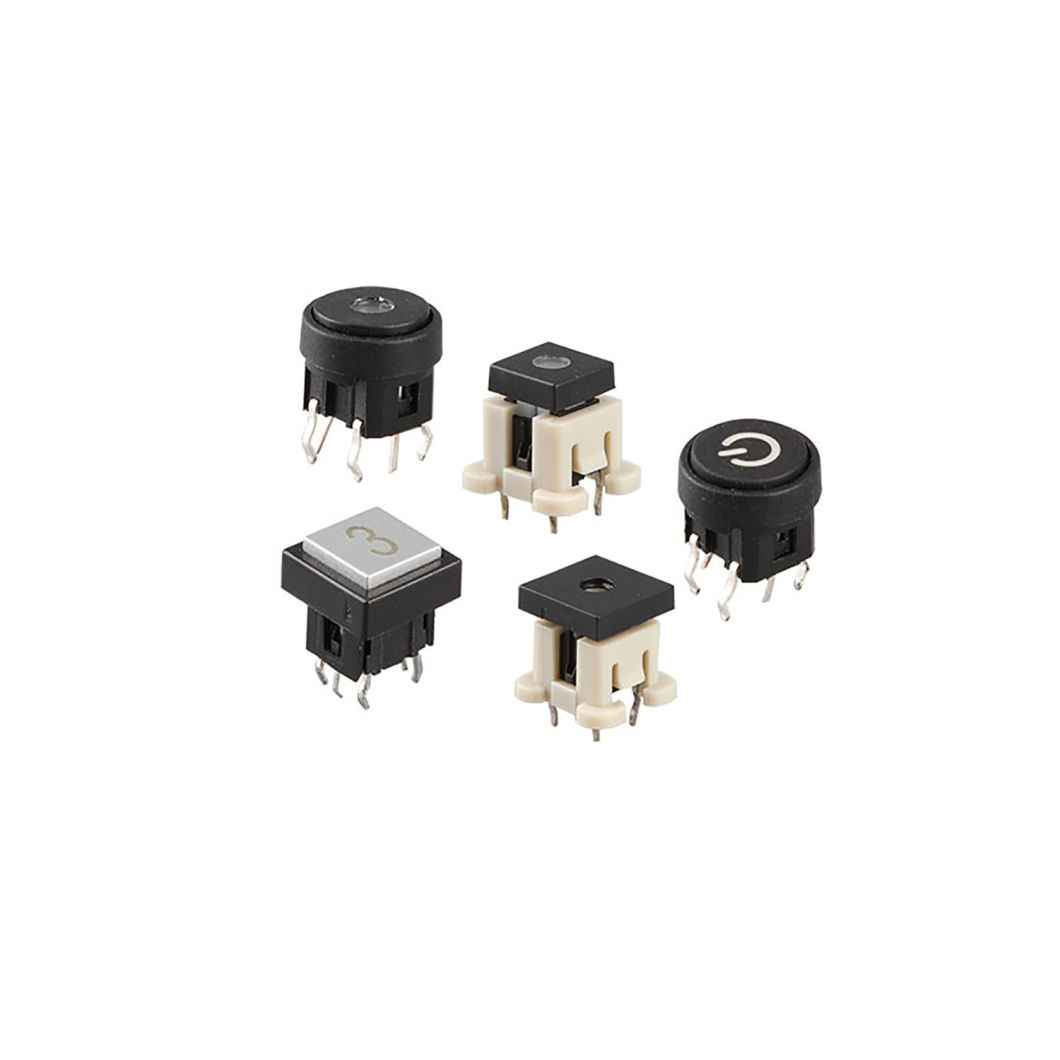

Waterproof Tact Switch Used in Power Tooling

  • ELTS-12

  • Silver

  • ISO, RoHS, CE

  • BNE

  • Bag

  • Elts-12

  • China

  • 85365000

Waterproof Tact Switch Used in Power ToolingTypical Specifications

TACT SWITCH
1. Rating: DC12V 50mA
2. Travel: 0.25¡: 0.10mm
3. Operating Force: 260¡: 80gf
4. Return Force: 60gf min
5. Contact resistance: 100MΩ Max
6. Insulation resistance: 100MΩ Min
7. Operating life¡: G300, 000 cycles



Product Description
Features:
1.Micro-Miniature, Innovative design
2.It has good feeling and long life
3.Snap-in type, can be mounted directly on P.C.Board and good for electrostatic discharge
4.It has a lot of choices for button shape and height and it is easily to install

Applications:
Include low power on/off designs, instrumentation, telecommunications, performance audio, computers/servers, networking and more.
1) Computer products
2) Consumer products
3) Communication equipments
4) Instrumentation

Welding Conditions:
1.Hand soldering
Use a soldering iron of 30 watts, controlled at 350ºC approximately 3 seconds while solder applying
2.Wave soldering/Reflow Soldering
The peak temperature of the wave oven should be set to 260ºC max. Condition for soldering Temperature Profile

Material:
1.Keystoke: Nylon/PBT Black
2.Base: Nylon/PBT Black
3.Contact: Copper-silver composite
4.Shell: IRON Tin-plated
5.Terminal: Brass Plating silver


Specification:

Basic Specification Parameter


Electrical Characteristics Rating DC12V 50mA
Contact Resistance ≤100m Ω
Insulation Resistance ≥ 100m Ω DC250V
Withstand Voltage AC500V 1 Minute
Electrical Life 50,000 Cycles above(Load)
Mechanical/Reliability Characteristics Operating Force Range 100/160/250gf
Mechanical Life 100,000 Cycles etc (NO Load)
Operating Temperature Range -25ºC+ 80ºC
Ambient Humidity Used ≤85%RH
Solder Ability 245ºC±5ºC 3S
Withstand Soldering Temperature 260ºC ±5ºC 3S


Product Picture & Drawing:

Packaging & Shipping
1) Packaging: Carton
2) Shipping:
Fedex, DHL, UPS, TNT for samples, 3-7 days.
By Air or by Sea for batch goods, 10-30 days.
3) Payment Terms: T/T, L/C, PayPal; 20% deposits; 80% balance before delivery

Why Choose Us?
1) We can provide you with different types of micro switches for your selection.
2) MOQ: 2000pcs,mixed order acceptable, welcome trial order.
3) We can provide free samples for your test.
4) Various operating force, height and colour for one item for your choice.
5) Safety, on-time delivery, excellent quality with competitive price.
6) OEM and ODM professional design.
