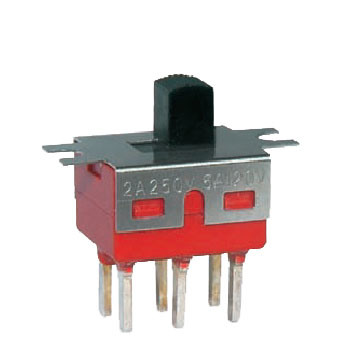

Slide Switch for Home Application

  • SS-333

  • BNE

  • China

  • 85365000



Slide Switch for Home Application

Slide switch
12A 125/250VAC (UL, CSA)

10(1)A 250V~μT85 (VDE, SEMKO, DEMKO, NEMKO, FIMKO, SEV, CQC)


Contact resistance: 20m ohm (MAX).

Insulation resistance: 100M ohm (MIN), DC 500V

Dielectric strength: 1000VAC FOR 1 minute
Base: PBT or Phenolic, UL rated 94V-2 min

Frame: Steel

Actuator: PBT+15%G. F, UL rated 94V-2 min

Movable Contact: Silver plated Copper

Terminals: Silver plated Copper

Contact Spring: Spring steel

Slide switch
Miniature slide switch
Contact Rating 5A120VAC or 28 VDC; 0.4VA max@ 20VAC OR DC max.
Electrical Life 30, 000 cycles
Insulation Resistance 1, 000M min.
Dielectric Strength 1, 500V RMS @sea level

Packaging & Shipping
1) Packaging: Carton
2) Shipping
Fedex, DHL, UPS, TNT for samples, 3-7 days.
By Air or by Sea for batch goods, 10-30 days.
3) Payment Terms
T/T, L/C, PayPal; 30% deposits; 70% balance before delivery

Why choose us?
1) We can provide you with different types of micro switches for your selection.
2) MOQ: 2500pcs,mixed order acceptable, welcome trial order.
3) We can provide free samples for your test.
4) Various operating force,height and colour for one switch for your choice.
5) Safety, on-time delivery, excellent quality with competitive price.
6) OEM and ODM professional design.

Our cooperative partner



FAQ
Q1--What is your MOQ?
In general ,Our MOQ is 2500 pcs, it will be more convenient and safety on packaging. Of course, it can be negotiable according to your situation.
Q2--What is the delivery time ?
3-7 days for samples; 10-30 days for batch goods.
Q3--Can you give me samples to test and how many samples?
Yes, we provide free samples, with shipping and taxes paid by the buyer. Usually, free samples are 5 pieces.
Q4--Does your products through UL, ROHS certification and so on?
Yes, our switches are with UL, CUL, VDE, TUV, ENEC, CE, EK, CQC, Nimko, Fimko, Simko, Dimko, CB approved, meet EU, RoHS standard.
Q5--Can you accept OEM?
Yes, we can accept OEM and ODM, they are welcome by us. But please offer us your authorization certification.
Q6--Is there cheap shipping cost to our country?
For small order, express will be best. And for bulk order, shipping by sea is better, but it takes much time.

Contact Rating
Dependent upon contact material
Mechanical life 30,000 make-and-break cycles
Contact Resistance 20mΩ max initial @2-4VDC 100mA for both silver and gold plated contacts
Insulation Resistance 1,000MΩ min
Dieletric Strength 1,000 V RMS @ sea level
Operation Temperature -30 to +85 degree

Material

Case
Diallyl Phthalate(DAP)(UL94V-0)
House Stainless steel
Actuator Nylon, black std.
Contact Silver or gold plated
Terminal Seal EpoxySlide Switch for Home Application
