250 Miniature Slide Switches
Insulation Resistance 1000M under 500V
Mechanical Life 20000 cycles
Rating 1A 250VAC 0.4VA max 20VAC or DC max
Dielectric Strength Between contacts 1000V, between contacts and neutral point 2000V eff 50Hz

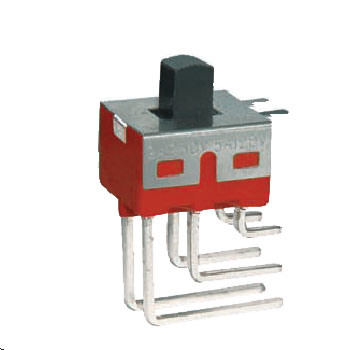

Miniature slide switch
Contact Rating 5A120VAC or 28 VDC; 0.4VA max@ 20VAC OR DC max.
Electrical Life 30, 000 cycles
Insulation Resistance 1, 000M min.
Dielectric Strength 1, 500V RMS @sea level
Packaging & Shipping
1) Packaging: Carton
Fedex, DHL, UPS, TNT for samples, 3-7 days.
By Air or by Sea for batch goods, 10-30 days.
3) Payment Terms
T/T, L/C, PayPal; 30% deposits; 70% balance before delivery
Why choose us?
1) We can provide you with different types of micro switches for your selection.
2) MOQ: 2500pcs,mixed order acceptable, welcome trial order.
3) We can provide free samples for your test.
4) Various operating force,height and colour for one switch for your choice.
5) Safety, on-time delivery, excellent quality with competitive price.
6) OEM and ODM professional design.
Our cooperative partner
Q1--What is your MOQ?
In general ,Our MOQ is 2500 pcs, it will be more convenient and safety on packaging. Of course, it can be negotiable according to your situation.
Q2--What is the delivery time ?
3-7 days for samples; 10-30 days for batch goods.
Q3--Can you give me samples to test and how many samples?
Yes, we provide free samples, with shipping and taxes paid by the buyer. Usually, free samples are 5 pieces.
Q4--Does your products through UL, ROHS certification and so on?
Yes, our switches are with UL, CUL, VDE, TUV, ENEC, CE, EK, CQC, Nimko, Fimko, Simko, Dimko, CB approved, meet EU, RoHS standard.
Q5--Can you accept OEM?
Yes, we can accept OEM and ODM, they are welcome by us. But please offer us your authorization certification.
Q6--Is there cheap shipping cost to our country?
For small order, express will be best. And for bulk order, shipping by sea is better, but it takes much time.
|Dependent upon contact material |
|Mechanical life ||30,000 make-and-break cycles |
|Contact Resistance ||20mΩ max initial @2-4VDC 100mA for both silver and gold plated contacts |
|Insulation Resistance ||1,000MΩ min |
|Dieletric Strength ||1,000 V RMS @ sea level |
|Operation Temperature ||-30 to +85 degree |
|Diallyl Phthalate(DAP)(UL94V-0) |
|House ||Stainless steel |
|Actuator ||Nylon, black std. |
|Contact ||Silver or gold plated |
|Terminal Seal ||Epoxy |
