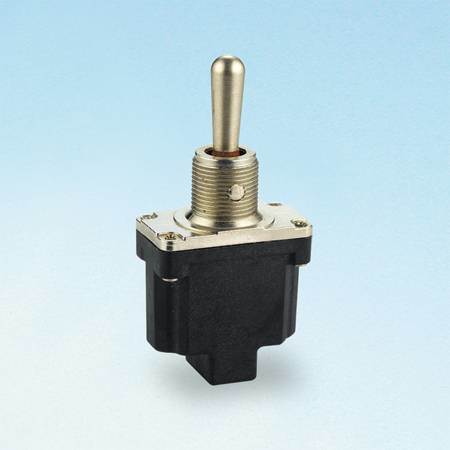

Sealed Toggle Switch

Sealed toggle switch

T60-T
Waterproof Toggle Switches. Industrial toggle switches with high amperage and metal or insulated lever.

Completely sealed switching chamber.
Step-design case provides added space between terminals to help prevent shorting.
IP68 protection degree

Contact Rating: 15 GPA, 125 VAC, 250 VAC, 277 VAC
Electrical Life: 10,000 cycles
Contact Resistance: 10mΩ max. (initial)
Insulation Resistance: 1,000MΩ min. 500VDC
Dielectric Strength: 2,500VAC / 1 min.

Materil:

• PLASTIC BASE, SLIDE & THE BASE OF SLIDE: Nylon
• TERMINAL: Copper alloy
• CONTACT CHIP: Plated Copper alloy, sliver alloy
• BUSHING: Plated Zinc alloy
• ACTUATOR: Plated Copper alloy
• SILICON: Silicon
