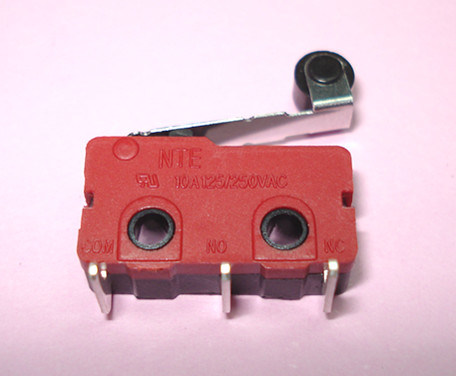

SGS Miniature 16 (4) a Micro Switch with Short Lever
Home » Products » Switches » micro switch » SGS Miniature 16 (4) a Micro Switch with Short Lever

Contact Us

Tel:+86-13771867640
Mob:+86-13771867640
Fax:+86-20-28819702
Share to:

SGS Miniature 16 (4) a Micro Switch with Short Lever

  • MM5-010A
  • Single Type
  • Military Products
  • PIONEER
  • ISO9001, UL, CCC
  • Snap Action Switch
  • BNE
  • Plastic Bag
  • CE, ROHS, SGS
  • China
  • 85365000
SGS Miniature 16 (4) a Micro Switch with Short LeverTypical Specifications

1. Rating: 1A 125/250 VAC
2. Operating Force: 30¡ 15gf
3. Release Force: 20¡ 15gf
4. Free Position: 7.9¡ 1.0mm
5. Operating Position: 6.2¡ 0.8mm
6. Release Position: 5.5¡ 0.8mm
7. Movement Differential: 0.4¡ 0.3mm
8. Total Travel Position: 5.2¡ 0.8mm
9. Operating life: 50, 000 cycles


Snap Action Switch with 5A/10A/16A

Pure silver contacts, with 3.0µm silver plated in terminals. Using UL T155 thermo-plastic PBT
*Widely used in home appliance, electronic equipment, automatic machine, communication equipment, car electron, apparatus and instrument, electric motion tool, etc
* Good substitution for Omron, Honeywell, Burgess, Marquard

Our cooperative partner



FAQ
Q1--What is your MOQ?
In general ,Our MOQ is 2500 pcs, it will be more convenient and safety on packaging. Of course, it can be negotiable according to your situation.
Q2--What is the delivery time ?
3-7 days for samples; 10-30 days for batch goods.
Q3--Can you give me samples to test and how many samples?
Yes, we provide free samples, with shipping and taxes paid by the buyer. Usually, free samples are 5 pieces.
Q4--Does your products through UL, ROHS certification and so on?
Yes, our switches are with UL, CUL, VDE, TUV, ENEC, CE, EK, CQC, Nimko, Fimko, Simko, Dimko, CB approved, meet EU, RoHS standard.
Q5--Can you accept OEM?
Yes, we can accept OEM and ODM, they are welcome by us. But please offer us your authorization certification.
Q6--Is there cheap shipping cost to our country?
For small order, express will be best. And for bulk order, shipping by sea is better, but it takes much time.



Type: KW3A-16ZSW0-A200
Construction category: D
Operation method: Snap Action
Configuration: Single-Pole Double-Through (SPDT)
Terminal form: 250#250 quick-connect Terminal
Mounting: via side mounting holes
Protection: IP40

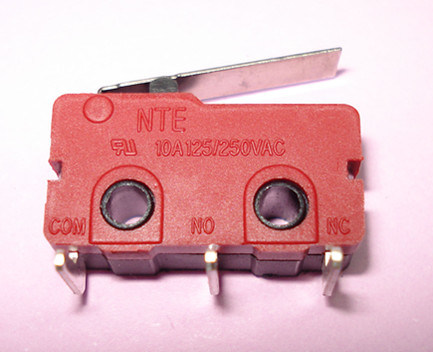

Product picture and Dimension



Packaging & Shipping

12) Shipping
Fedex, DHL, UPS, TNT for samples, 3-7 days.
By Air or by Sea for batch goods, 10-30 days.
2) Payment Terms
T/T, L/C, PayPal; 30% deposits; 70% balance before delivery

Why choose us?
1) We can provide you with different types of micro switches for your selection.
2) MOQ: 2500pcs,mixed order acceptable, welcome trial order.
3) We can provide free samples for your test.
4) Various operating force,height and colour for one switch for your choice.
5) Safety, on-time delivery, excellent quality with competitive price.
6) OEM and ODM professional design.
