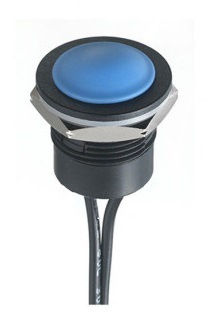

LS-001
85365000
GENERAL
1) Scope: This specification covers the requirements for single key switches which have no keytop(TACT SWITCHES:MECHANICAL CONTACT).
2) Operating Temperature Range: -15 to 60°C (normal humidity, normal press.)
3) Storage Temperature Range: -25 to 70°C (normal humidity, normal press.)
4) Test Conditions
Tests and measurements shall be made in the following standard conditions unless otherwise specified:
Normal temperature (temperature 16°C)
Normal humidity (relative humidity 63 to 74%)
Normal pressure (pressure 102KPa)
APPEARANCE, STYLE, AND DIMENSIONS
1) Appearance: Functionally free from rust,crack and bad plating
2) Style and Dimensions: Reference per attached outline drawing
3) Type of actuation: Tactile feedback
4)Contact Arrangement: SPST
5) Maximum Ratings: DC 12V 50mA
| Basic specfication Parameter | ||
| Electrical Characteristics | Rating | DC12V 50mA |
| Contact Resistance | ≤100m Ω | |
| Insulation Resistanc | ≥ 100m Ω DC250V | |
| Withstand Voltage | AC500V 1 Minute | |
| Electrical Life | 50,000 Cycles above(Load) | |
| Mechanical/Reliability Characteristics | Operating Force Range | 100/160/250gf |
| Mechanical Life | 100,000 Cycles etc (NO Load) | |
| Operating Temperature Range | -25ºC+ 80ºC | |
| Ambient Humidity Used | ≤85%RH | |
| Solder Ability | 245ºC±5ºC 3S | |
| Withstand Soldering Temperature | 260ºC ±5ºC 3S |
