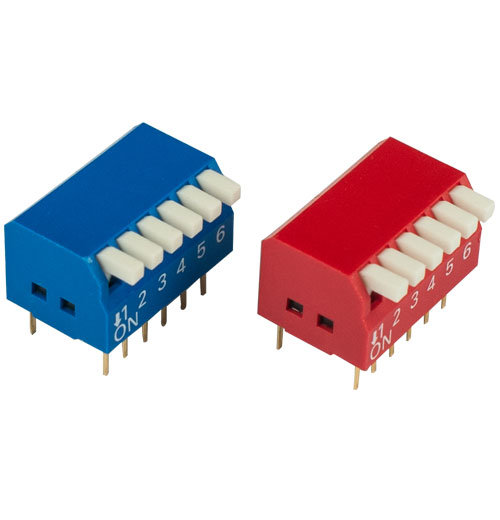

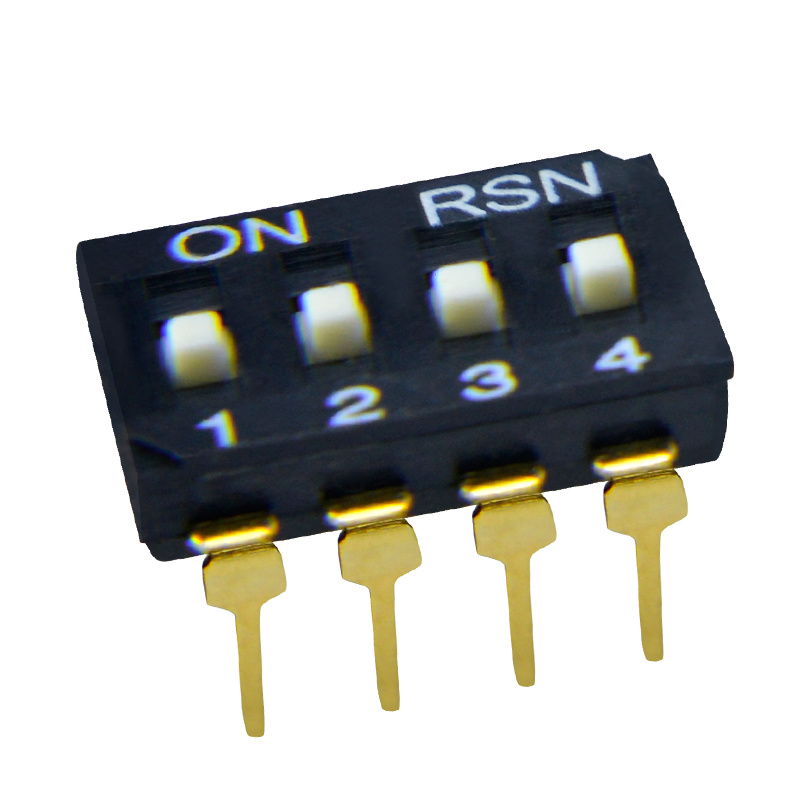

SGS 25mA/24V DC/UL94V-0 Micro Miniature DIP Switch (DE Series)

  • DE Series

  • 85365000

SGS 25mA/24V DC/UL94V-0 Micro Miniature DIP Switch (DE Series)Typical Specifications DE Series


DIP switch
1. Rating: DC 24V 25mA
2. Contact resistance: 50MΩ Max
3. Insulation resistance: 100MΩ Min
4. Operating Life: 2, 000 cycles
Product Description
Specification
Electrical Electrical Life 2000 operation cycles per switch 24VDC, 25mA
Non-Switching Rating 100mA 50VDC
Switching Rating 25mA 24VDC
Contact Resistance (a) 50m max. at initial
(b) 100m max. After life test
Insulation Resistance 100M min. (at 500VDC)
Dielectric Strength 500VAC/1 minute
Capacitance 5pF max.
Circuit Single pole single throw
Mechanical Mechanical Life 2000 operations per cycle switch
Operation Force 800gf max.
Stroke 2.0mm
Operation Temp -25 to +70 Degree
Storage Temp -40 to +85 Degree
Vibration Test ML-STD-202F METHOD 201A
Frequency: 10-55-10 Hz/1 min
Directions: X,Y, Z, three mutually
Perpendicular directions.
Time: 2 hours each direction.
High reliability.
Shock Test ML-STD-202F METHOD 213B.
CONDITION A
GRAVITY: 50G (peak value), 11 m/sec.
Direction and times: 6 sides and three times in each direction. High reliability.

Applications
1) Widely used in home appliance, electronic equipment, automatic machine, communication equipment, car electron, apparatus and instrument, electric motion tool, etc.
2) Good replacement for Omron, Honeywell, Burgess, Marquard.

Packaging & Shipping
1) Packaging: Carton
2) Shipping
Fedex, DHL, UPS, TNT for samples, 3-7 days.
By Air or by Sea for batch goods, 10-30 days.
3) Payment Terms
T/T, L/C, PayPal; 30% deposits; 70% balance before delivery

Why choose us?
1) We can provide you with different types of micro switches for your selection.
2) MOQ: 2500pcs,mixed order acceptable, welcome trial order.
3) We can provide free samples for your test.
4) Various operating force,height and colour for one switch for your choice.
5) Safety, on-time delivery, excellent quality with competitive price.
6) OEM and ODM professional design.
7) Our cooperative partner
Our clients include famous domestic public corporations, such as Joyoung, H&T, Topband, Newcapec, Routon, Haier, Siasun, Treyo. Also we cooperate with many famous overseas brand, such as Whirlpool, Siemens, Electrolux, Panasonic, Eaton, Emerson etc.

FAQ
Q1--What is your MOQ?
In general ,Our MOQ is 2500 pcs, it will be more convenient and safety on packaging. Of course, it can be negotiable according to your situation.
Q2--What is the delivery time ?
3-7 days for samples; 10-30 days for batch goods.
Q3--Can you give me samples to test and how many samples?
Yes, we provide free samples, with shipping and taxes paid by the buyer. Usually, free samples are 5 pieces.
Q4--Does your products through UL, ROHS certification and so on?
Yes, our switches are with UL, CUL, VDE, TUV, ENEC, CE, EK, CQC, Nimko, Fimko, Simko, Dimko, CB approved, meet EU, RoHS standard.
Q5--Can you accept OEM?
Yes, we can accept OEM and ODM, they are welcome by us. But please offer us your authorization certification.
Q6--Is there cheap shipping cost to our country?
For small order, express will be best. And for bulk order, shipping by sea is better, but it takes much time.
