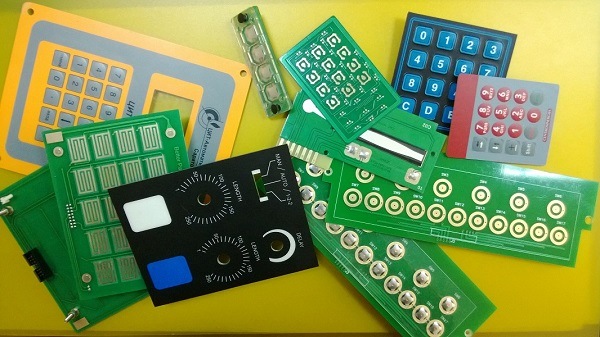

Non-Tactile Membrane Circuit Switch

  • Model: Non-Tactile 08
  • Multi Control Switch
  • Retro-reflective Mode
  • Bne
  • ISO9001, UL, CE, CCC
  • Overlay Options
  • BNE
  • Plastic Bag
  • CE, ROHS, SGS
  • China
  • 85365000
Non-Tactile Membrane Circuit Switch

NON-TACTILE
MEMBRANE CIRCUIT
Silver Flex Circuits are a popular alternative to Copper Flex Circuits. Silver ink conductors are added to the flexible film substrate using a screen-printing process, making it the more popular and cost-effective choice.
? High Reliability
? Moisture Resistant
? 5 Million Actuations
? Embedded LEDs
? Fiber Optic Backlighting
? Electroluminescent Backlighting





Membrane Switches typically consist of a polyester graphic overlay and spacers on a flexible silver printed circuit. The simplicity of Membrane Switch construction makes it easy to design and one of the lowest cost switch options available. The Graphic Overlay provides a natural fluid barrier and its long life cycle capabilities make it the right product for many applications.

Design options for Membrane Keypads:
Non-Tactile or Tactile Membrane Keypad
? Poly dome Tactile Membrane Switch
? Metal dome Tactile Membrane Switch
? PushGate Tactile Membrane Switch

Overlay Options
? Embossed or Non embossed Graphic Overlay
? Glossy or Textured Graphic Overlay
? UV Protection or Micro ban Graphic Overlay

Lighting Options
? Embedded LED's
? Vmanx Illumination for even illumination of Icons and logos
? Fiber Optic Backlighting
? EL

Circuit Options
? Printed Silver on Polyester or Copper Polyimide

Sealing options
Shielding - ESD / EMI (Silver, Carbon, ITO)
Flex Tail termination
? ZIF, Connectors or Solder Pin
