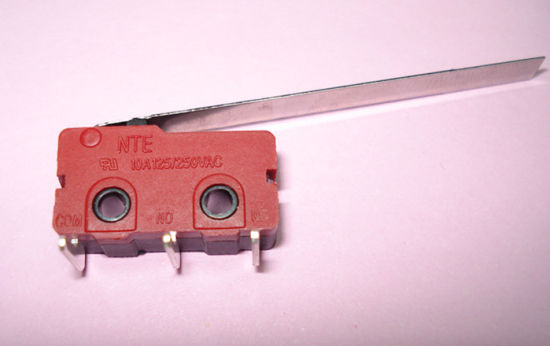

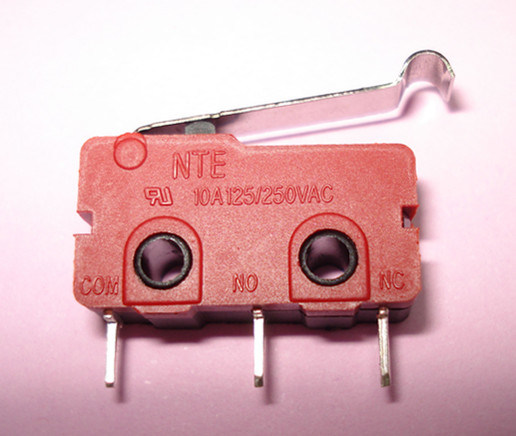

Micro Switch

  • WK3-09
  • China
  • 85365000
Micro SwitchSpecifications of Micro Switch series

Temperature -40-70 oC Withstand Voltage AC250V(50Hz)/min
Rated load 0.4A60VDC
2A250AC Actuating Force 60-70
Contact Resistance <0.02Ω Life 100000
Insulation Resistance >100MΩ

Packaging & Shipping
1) Packaging: Carton
2) Shipping
Fedex, DHL, UPS, TNT for samples, 3-7 days.
By Air or by Sea for batch goods, 10-30 days.
3) Payment Terms
T/T, L/C, PayPal; 30% deposits; 70% balance before delivery

Why choose us?
1) We can provide you with different types of micro switches for your selection.
2) MOQ: 2500pcs,mixed order acceptable, welcome trial order.
3) We can provide free samples for your test.
4) Various operating force,height and colour for one switch for your choice.
5) Safety, on-time delivery, excellent quality with competitive price.
6) OEM and ODM professional design.

Our cooperative partner


FAQ
Q1--What is your MOQ?
In general ,Our MOQ is 2500 pcs, it will be more convenient and safety on packaging. Of course, it can be negotiable according to your situation.
Q2--What is the delivery time ?
3-7 days for samples; 10-30 days for batch goods.
Q3--Can you give me samples to test and how many samples?
Yes, we provide free samples, with shipping and taxes paid by the buyer. Usually, free samples are 5 pieces.
Q4--Does your products through UL, ROHS certification and so on?
Yes, our switches are with UL, CUL, VDE, TUV, ENEC, CE, EK, CQC, Nimko, Fimko, Simko, Dimko, CB approved, meet EU, RoHS standard.
Q5--Can you accept OEM?
Yes, we can accept OEM and ODM, they are welcome by us. But please offer us your authorization certification.
Q6--Is there cheap shipping cost to our country?
For small order, express will be best. And for bulk order, shipping by sea is better, but it takes much time.

Item Value
Rating 5 (2)A 250V AC (10,3,1,0.1)
Safety approvals UL, CUL, VDE, TUV, ENEC, CE, EK, CQC, Nimko, Fimko, Simko, Dimko, CB
Endurance Mechanical(60times/min): ≥1,000,000 cycles
Electrical(25times/min): ≥50,000 cycles
Temperature Degree T105, T125
Protection Degree IP40
Contact resistance ≤50mΩ (initial value)
Insulation Resistance ≥100MΩ (500V DC)
Dielectric strength Terminal to terminal AC1000V,50/60Hz,1min
Terminal to ground AC3750V,50/60Hz,1min
Vibration resistance 10-55Hz,1.5mm Double amplitude
Operating Speed 0.1mm-1m/s (related with actuator forms)
Shork Resistance Destruction: OF >0.5N:1000m/S2, OF ≤0.5:400m/S2
Malfunction: OF >0.5N:200m/S2,OF ≤0.5N:100m/S2
meet EU, RoHS standard
Weight Approx. 1.6g(No lever)
