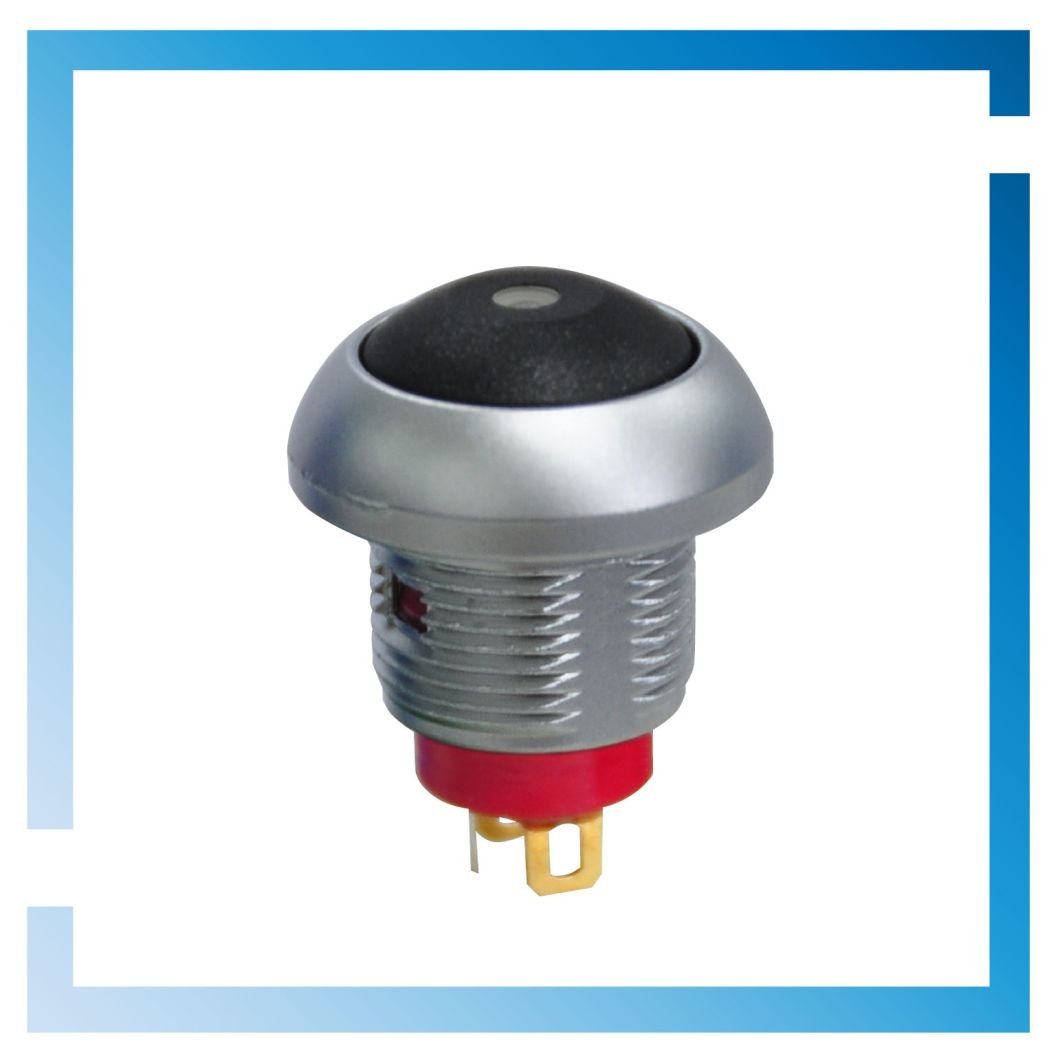

Ecoded Switch for Corridor (KSA-1)

  • KSA-1

  • ISO, RoHS, CE

  • BNE

  • Bag

  • micro switch

  • China

  • 85365000

Ecoded Switch for Corridor (KSA-1)
RATING/CHARACTERISTICS Switching Capacity AC50/DC30V 1mA~0.1A
Carry current 500mA
Contact Resistance 200MΩ Max.
Insulation 10MΩ Min. (At 250VDC) between nonconnected terminals
Resistance 100MΩ Min. (At250VDC) between each terminal and noncurrent-carrying part
Vibration 10 to 55Hz, 1.5mm
Shock 490m/s (approx. 50g's)
Ambient Temperature Operating: -10to+65 degree Storage: -20to+80 degree
Humidity 45 to 85%RH max.
Service life Mechanically: 30, 000 operations(steps)min. Electrically: 20, 000 operations (steps)min.

Product Description
Special design can protect the internal terminal and can be installed quickly
Rating: 6A125VAC 3A250VAC
Contact resistance: 50mΩ Max
Maximum insulation resistance: 100MΩ
Withstand Voltage: 1000VAC for 1 Minute
Operating force: 250±50gf
Life Cycle: 50,000 Cycles
Function: OFF-(ON)

Packaging & Shipping
1) Packaging: Carton
2) Shipping
Fedex, DHL, UPS, TNT for samples, 3-7 days.
By Air or by Sea for batch goods, 10-30 days.
3) Payment Terms
T/T, L/C, PayPal; 30% deposits; 70% balance before delivery

Why choose us?
1) We can provide you with different types of micro switches for your selection.
2) MOQ: 2500pcs,mixed order acceptable, welcome trial order.
3) We can provide free samples for your test.
4) Various operating force,height and colour for one switch for your choice.
5) Safety, on-time delivery, excellent quality with competitive price.
6) OEM and ODM professional design.

Our cooperative partner

Q1--What is your MOQ?
In general ,Our MOQ is 2500 pcs, it will be more convenient and safety on packaging. Of course, it can be negotiable according to your situation.
Q2--What is the delivery time ?
3-7 days for samples; 10-30 days for batch goods.
Q3--Can you give me samples to test and how many samples?
Yes, we provide free samples, with shipping and taxes paid by the buyer. Usually, free samples are 5 pieces.
Q4--Does your products through UL, ROHS certification and so on?
Yes, our switches are with UL, CUL, VDE, TUV, ENEC, CE, EK, CQC, Nimko, Fimko, Simko, Dimko, CB approved, meet EU, RoHS standard.
Q5--Can you accept OEM?
Yes, we can accept OEM and ODM, they are welcome by us. But please offer us your authorization certification.
Q6--Is there cheap shipping cost to our country?
For small order, express will be best. And for bulk order, shipping by sea is better, but it takes much time.

Contact Rating 6A125VAC 3A250VAC
Mechanical Life 50,000 make-and-break cycles
Contact Resistant 10mΩ max. Initial @ 2-4VDC 100mA for both silver and gold plated contacts
Dielectric Strength 1,000V RMS@sea level
Insulation Resistance 1,00MΩ min.
Temperature Range -10 to +85 degree
Case Diallyl phthalate (DAP) (UL94V-0)
Actuator Nylon, Black std
Bushing Brass, nickel plated
Housing Stainless Steel
Switch Support Brass, tin plated
Terminal/Contact Brass, with silver or gold plated
