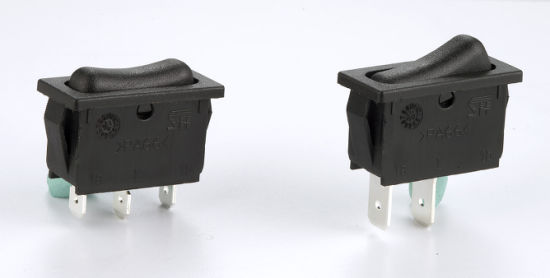

Double Pole Rocker Switches up to 20A 125VAC

  • MR6-210C5W-GBRB

  • BNE

  • Plastic Bag

  • ROHS, SGS

  • China

  • 85365000

Double Pole Rocker Switches up to 20A 125VAC

ROCKER SWITCH

Soldering, PCB or Quick Connecting Terminals, High Inrush Current up to 128A on request


Contact Rating: 5A@125 VAC OR 28 VDC; 0.4VA max@ 20VAC or DC max.
Electrical LifeL 50, 000cycles
Contact Resistance: 10mmax.
Insulation Resistance: 1, 000Mmin.
Dielectric Strength: 1, 500V RMS@sea level


Rating:
Features

16(4)A, 125/250VAC~T125/55
DPST or SPST
Initial contact resistance : 20m ohm (max.)
Insulation resistance : 100M ohm (min,) at 500VDC
Dielectric strength : 1,000VAC for 1 minute
Electrical life : 10,000 cycles

Plastic ring fitting custom design actuation
Soldering, .187 quick connecting and PCB terminals
Plastic housing and actuator


RM-210C2N-NBB1


RATING:
16(8)A 125/250V, ~ μT55,~ μT85/55, 1E4, 50/60Hz (cURus, ENEC15)
20(8)A 125/250V,~ μT55,~μT85/55, 1E4, 50/60Hz(cURus, ENEC15)
16A DC, 6~30V, μT55, μT85/55, 1E4, 50/60Hz (cURus, ENEC15)
Electrical life:6,000 cycles(cURus), 10,000 cycles
( ENEC15)
Dielectric strength: 1,500 VAC for 1 minute
Initial contact resistance: 20m Ohms max.
Insulation resistance: 100M Ohms min, at 500VDC

FEATURES:
Safety approved internationally by cURus in North America, ENEC15 in Europe (UL61058-1)
1, 2 pole circuitry; 2 and 3 positions, maintained and momentary action
Optional actuator type and marking.
Environment-proof sealing, confirming to IP67 level
Quick-connect, solder and screwed terminals
Panel accessories as optional parts
Application includes automotive, marine, agriculture machine and more.
Red, green, blue or other color len windows are available, please consult our sales.



Product Description
Applications include low power on/off designs, instrumentation, telecommunications, performance audio, computers/servers, networking and more.
1) Computer products
2) Consumer products
3) Communication equipments
4) Instrumentation

Features
1) Small Size
2) Full color LED illuminated available
3) Long electrical life cycles
4) SMT and vertical PCB terminal

Packaging & Shipping
1) Packaging: Carton
2) Shipping
FedEx, DHL, UPS, TNT for samples, 3-7 days.
By Air or by Sea for batch goods, 10-30 days.
3) Payment Terms: T/T, L/C, PayPal; 30% deposits; 70% balance before delivery

Why choose us?
1) We can provide you with different types of micro switches for your selection.
2) MOQ: 2500PCS, mixed order acceptable, welcome trial order.
3) We can provide free samples for your test.
4) Various operating force, height and colour for one switch for your choice.
5) Safety, on-time delivery, excellent quality with competitive price.
6) OEM and ODM professional design.
7) Our cooperative partner
Our clients include famous domestic public corporations, such as Joyoung, H&T, Topband, Newcapec, Routon, Haier, Siasun, Treyo. Also we cooperate with many famous overseas brand, such as Whirlpool, Siemens, Electrolux, Panasonic, Eaton, Emerson etc.

FAQ
Q1--What is your MOQ?
In general, Our MOQ is 2500 PCS, it will be more convenient and safety on packaging. Of course, it can be negotiable according to your situation.
Q2--What is the delivery time?
3-7 days for samples; 10-30 days for batch goods.
Q3--Can you give me samples to test and how many samples?
Yes, we provide free samples, with shipping and taxes paid by the buyer. Usually, free samples are 5 pieces.
Q4--Does your products through UL, RoHS certification and so on?
Yes, our switches are with UL, cUL, VDE, TUV, ENEC, CE, EK, CQC, Nimko, Fimko, Simko, Dimko, CB approved, meet EU, RoHS standard.
Q5--Can you accept OEM?
Yes, we can accept OEM and ODM, they are welcome by us. But please offer us your authorization certification.
Q6--Is there cheap shipping cost to our country?
For small order, express will be best. And for bulk order, shipping by sea is better, but it takes much time.


6A 125VAC, 3A 250VAC ( UL, CUL )
3A 250VAC T100/55 (VDE, ENEC, KC)
3A 250VAC (CQC)
Initial contact resistance : 20m ohm MAX.
Insulation resistance : 100M ohm MIN. at 500VDC
Dielectric strength : 1,000VAC FOR 1 MINUTE.
Electrical life : 10,000 cycles.

Temperature range : 0 to + 100 degrees in Celsius
Base : Nylon 66, UL rated 94V-2 min
Actuator : Nylon 66, UL rated 94V-2 min
Spring : Piano wire
Contacts: Silver alloy
Terminals: Silver plated copper alloy
Patent No: M400077 (TAIWAN)
Patent No: 1918990 (CHINA)


Rating
16A 125/250VAC(UL, CUL)
15A 125VAC(PSE)
Electrical Life 10,000 cycles
Contact Resistance 30mΩ max
Dielectric Strength 1,500VAC 1minute
Insulation Resistance 1,00MΩ min, at 500VDC
Temperature Range T85
