PBM-16M12-HS-QL
Type b Contact
Retro-reflective Mode
PIONEER
ISO9001, UL, CE, CCC

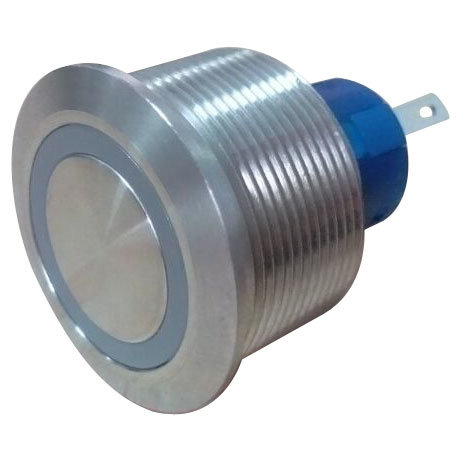

Illuminated or Non-Illuminated Pushbutton Switch
BNE
Polly Bag
ROHS, SGS
China
85365000
Contact Rating | Dependent upon contact material |
Mechanical life | 50000 make-and -break cycles at full load |
Contact resistance | 20m Ω max.initial @2-4 VDC 100mA, for both silver and gold palted contacts |
Insulation Resistance | 1000M Ω min.@seal level |
Operating tenmperature | -30 ºC to +85 ºC |
Cap installation force | 10 lbs,max ,permissible |
Case & Bushing | Glass filled nylon6/6 or nylon 4/6(UL94v-0) |
Plunger | Glass filled nylon or glass filled polyester(UL 94V-0) |
Switch Support | Copper alloy or steel, tin palted |
Switch Support Retauber | Stainles steel |
N.O&N.C Contacts | Brass, with gold plate over nikel plate |
Common contacts & all terminals | copper alloy with gold plate over nickel plate |
Terminal seal | Epoxy |
